This Ford amplifier T-harness allows you to keep your factory radio (NON SONY / NON B&O) while adding in your new aftermarket amplifier(s) without the need to cut into or modify your OEM wiring, Plug & Play.

If you have the factory SONY OR B&O-amplified Audio System, you will need the:

*Pac AP4-FD21 LOC T-Harness Kit (SONY 2012 - 2019) & Pac APH-FD01 (SONY 2012 - 2019)

OR

*Pac AP4-FD31 LOC T-Harness Kit (B&O 2018 - 2024)

If you simply just need a 2 channel version to power an amp / sub only, use this harness

*2011 - 2020 Ford "Add an Amplifier" T-Harness Kit

Kit includes:

1. Your choice of Line Out Converter (LOC)

2. 20 Ohm Load Resistors (for Basic LOC ONLY)

3. Your choice of LOC Mount (5/6 Channel LOC ONLY)

4. 17' Loop-back speaker wire harness

5. Plug and play Radio T-harness

Line Out Converter (LOC) Options:

(4 Channel versions)

1. Recoil 4 Channel LOC (Basic Quality)

   • LOC installs behind the factory radio

   • Includes 20 Ohm Load Resistors

2. Pac LP3-4 4 Channel LOC (Better Quality)

   • LOC installs behind the factory radio

   • Includes 20 Ohm Load Resistors

3. NVX XLOC44X 4 Channel LOC (Better Quality, Line Driver, Load Resistors, Bass Knob).

   • Includes 7' or 17' of cable to install LOC next to your amplifier(s) either under the front seats or in trunk / back of cab.

4. Pac LPA-E4 4 Channel LOC (High Quality, Line Driver, Load Resistors)

   • Includes 7' or 17' of cable to install LOC next to your amplifier(s) either under the front seats or in trunk / back of cab.

(5/6 Channel versions)

1. NVX XLOC66X 5/6 Channel w/ Bass Knob LOC (Better, Line Driver, Load Resistors, Bass Knob)

   • Includes custom PETG ProvoBeast NVX Mount in the color of your choice.

   • Includes 7' or 17' of cable to install LOC next to your amplifier(s) either under the front seats or in trunk / back of cab.

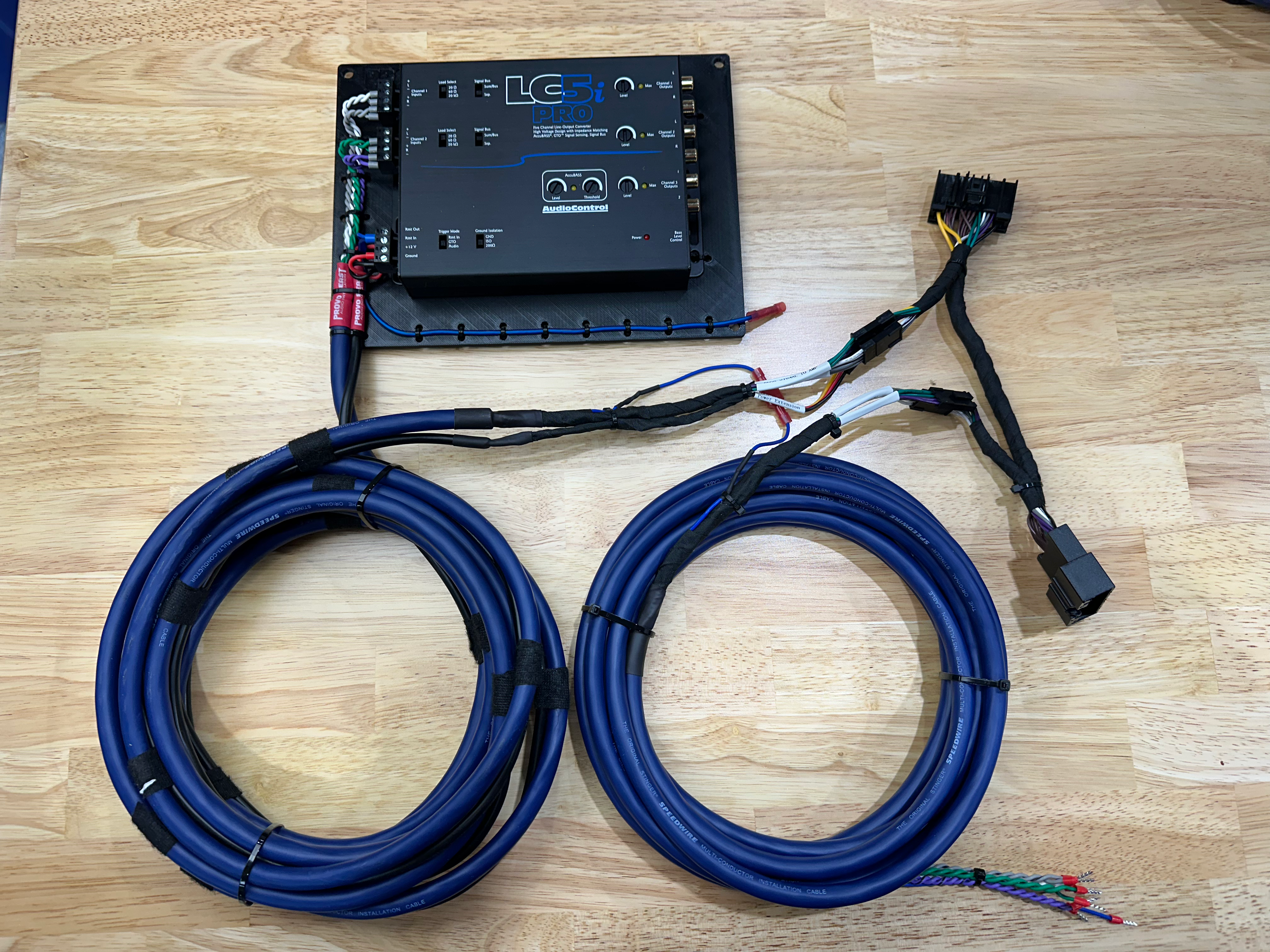

2. AudioControl LC5i 5/6 Channel LOC (High Quality, Line Driver, Load Resistors, Bass Knob)

   • Includes custom PETG ProvoBeast AudioControl LC5i PRO Mount in the color of your choice.

   • Includes 7' or 17' of cable to install LOC next to your amplifier(s) either under the front seats or in trunk / back of cab.

NOTES:

**This harness is NOT for the SONY OR B&O factory audio systems.  If have the factory amplifier and are looking to bypass the factory amp, you will need the Pac Amp Pro / Harness system instead (Pac AP4-FD31)

***If installing multiple amplifiers, or using a 5 channel amplifier that doesn't have internal summing for the subwoofer channel (needs a dedicated subwoofer input only), you may need an RCA splitter(s) if ordering a 4 channel LOC kit.

Compatibility guide:

2013-2017    FORD    C-MAX 2011-2020    FORD    EDGE 2013-2019    FORD    ESCAPE 2015-2020    FORD    EXPEDITION 2011-2019    FORD    EXPLORER 2013-2020    FORD    F-150 2013-2019    FORD    F-250 2013-2019    FORD    F-350 2013-2019    FORD    F-450 2013-2019    FORD    FLEX 2013-2018    FORD    FOCUS 2013-2020    FORD    FUSION 2015-2020    FORD    MUSTANG 2013-2019    FORD    TAURUS

**PLEASE INSTALL AT YOUR OWN RISK.  PROVO BEAST AUDIO INSTALLATION IS NOT LIABLE FOR ANY DAMAGE CASUED BY THE INSTALLER DURING THE INSTALLATION.  PROFESSIONAL INSTALLATION RECOMMENDED.**
